This box is used to connect one power cable to two heating cables,or to ensure the continuity of a power cable between several boxes, and connecting a single heating cable on each box.

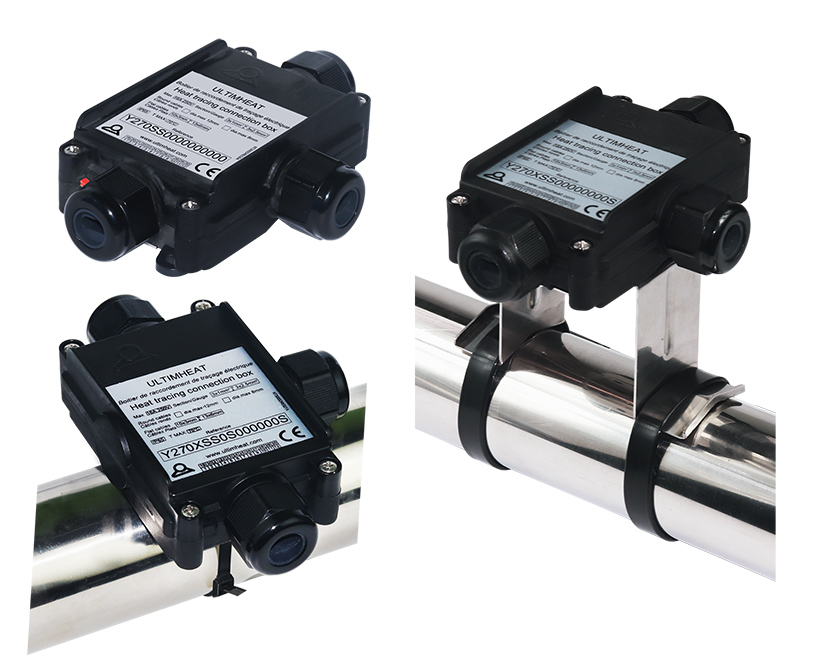

It can be mounted on a flat surface, or on a pipe.
The terminal blocks are easily accessible and the connection is simple, including for self-regulating flat cables with metallic protective braid.
Main features
Material: Polyamide 6 black, 96mm x 67mm x 36mm (Cable glands not included). Excellent UV resistance.
Waterproof grade: IP65.
Mounting: 2 removable wall mounting bracket, holes distance 96mm. Pipe mounting with cable tie also possible with 2 small metal tabs screwed on backside.
Note: if you want to rotate the case 90° relative to the pipe, use the Y28 model with three outputs.
Terminals:
- Screw terminals with captive toothed square washers accepting stranded or rigid conductors
-The mechanical tightening of the cable is ensured by a screwed metal saddle, usable on round or flat cable. This patented saddle also ensures the earthing of the metal braid of the heating cables.
- Wire gauge: 3 x 1 mm² to 3 x 2.5mm²
- Maximum permissible intensity: 16A 250V.
Cables outlet: with M24 cable glands, with 70 shore NBR gaskets (Silicone is available on request).
- Maximum diameter of round cables: 8; 12 or 14 mm depending on the gaskets installed.
- Limit sizes of oblong cables:
- From 8 x 5 to 9.5 x 6 mm
- From 9.5 x 2.5 to 11 x 3.5 mm
- From 11 x 4 to 13 x 6mm
- From 12.5 x 8 to 14.2 x 9.2mm
For more information about tightening possibilities on round and oblong cables, see the catalogue page on 6YTP cable glands.
Inviolability: The case can receive one or two seals (delivered with 5 red seals)
Sealing: supplied with 5 red plastic ties for use in the sealing holes
Easy assembly: Assembly is made with full access to terminals when cover is removed. Mounting on wall or pipe can be made with cover removed or cover assembled.
Accessory: Bracket in stainless steel for offset mounting on pipe with up to 50mm insulation thickness. Can be screwed on the two M4 threads on backside. See the 6YTQT in the accessories section.
Options:
- Model for 3 heating wires without power supply cable
- Model for one heating cable and 2 power supply cables.
Consult us for parts numbers of simplified models with only one dimension of cable gland gasket for round wire and flat wires, customized label, and specific set of accessories for pipe mounting (OEM versions).
Main part numbers
(These models include 2 small metal tabs for pipe surface mounting*).
Part numbers |
Seals on side A** |
Seals on side B** |
Seals on side C** |
|
Y270PFF0000000S0 |
Silicone seal for round cable dia. |
Silicone seal for oblong cable max. |
Silicone seal for oblong cable max. |
|
8mm max. |
size 13x6mm. |
size 13x6mm. |
||
Y270KNN0000000S0 |
NBR seal for round cable dia. 8mm |
NBR seal for oblong cable max. size |
NBR seal for oblong cable max. size |
|
max. |
13x6mm. |
13x6mm |
||
Y270PSS0000000S0 |
Silicone seal for round cable dia. |
Set ofSilicone seal for oblong |
Set of Silicone seal for oblong |
|
cables max. size 9.5x6; 11x3.5; |
cables max. size 9.5x6; 11x3.5; |
|||
8mm max. |
||||
13x6 and 14.2x9.2mm. |
13x6 and 14.2x9.2mm. |
|||
Y270KXX0000000S0 |
NBR seal for round cable dia. 8mm |
Set of NBR seals for oblong cables |
Set of NBR seals for oblong cables |
|
max. size 9.5x6; 11x3.5; 13x6 and |
max. size 9.5x6; 11x3.5; 13x6 and |
|||
max. |
||||
14.2x9.2mm. |
14.2x9.2mm. |
* Models without the 2 small tabs, replace 0S0 by 000 in the part number.
** Silicone seals recommended for ambient temperature higher than 80°C.
