Controls and Safety : Manual Reset Thermostat
  >

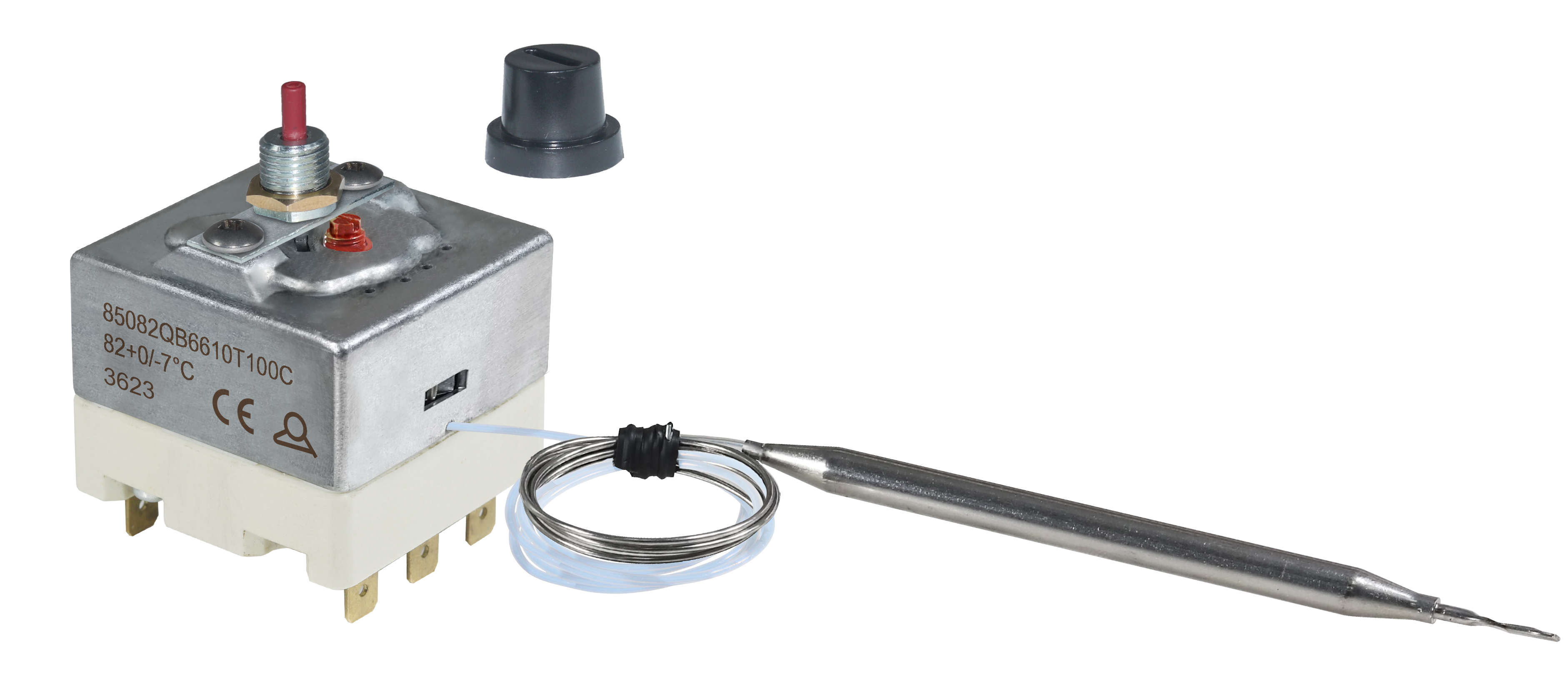

Type 85
Type 85
3 poles manual reset high limit, fail saf
Controls and Safety
Manual Reset Thermostat
Check PDF
Click to see more languages available in the datasheet
Product applicable fields
  • Air and Fluid heating solutions
  • Renewable energy
  • Industry
  • Ventilation
  • Professionnal kitchen
product presentation

Housing dimensions:

  • Two M4 screws, 28mm distance mounting: 47 × 47 × 43 mm (terminals not included).
  • Type with M10 central bush mounting: 47 × 47 × 56 mm (terminals not included).



Bulb and capillary: Stainless steel, capillary length 250mm to 1,500mm with 150 mm long FEP sleeve on capillary or 1000 mm with 900 mm long FEP sleeve on capillary. Capillary minimum bending radius 5 mm

Temperature sensing element: Liquid filled bulb and capillary.

Terminals: 6.35 × 0.8 quick connect terminals (M4 screw with saddle also available on request)

Adjustment: Fixed setting, sealed..

Manual reset: Fail safe, fixed setting, front access reset button

Fail safe contact action by low temperature: Temperature under -15°C (5°F) will trigger the manual reset. Then it is possible to manually reset the contacts when temperature resumes to normal

Mounting: 2 screws M4, 28mm distance. (Front bushing, M10 × 0.75 thread available on request)

Rating: 30A 250/400VAC resistive

Contacts: 3 snap action simultaneous contact, open on temperature rise

Max ambient temperature on body: 125°C (257°F).

Other technical features: Ask for technical data sheet of the specific product.

Options:

  • M14 fitting on capillary (for water baths and deep fryers).
  • Central M10 bush mounting.
  • 1, 2, or 3 gold plated contacts for thermocouple circuits or electronic low voltage devices



Approvals: CE (by TÜV).
