Applications
They radiate in the infrared between 3 and 6μ. They are characterized by an emissivity close to 100% within this range, they show a low surface temperature, a high mechanical strength, and high corrosion resistance.
They are particularly suited for heating, drying, or polymerization of a large part of usual materials where they heat faster than the traditional convection heating.
They can be used for:
- Food warming of products displayed or waiting in fast food and restaurants
(See test report in the section 2 of this catalogue)
- Drying at low temperature leather, wood, prints and dyes, paints, ceramic email, food, fish.
- Varnish Polymerization on metal in automotive, appliances and similar industries - Heating of plastics before forming
- Sterilization of medical devices and equipment or food
- Outdoor ambient warming
- Reheating workstation in workshop
- Heating of stabbles, poultry.

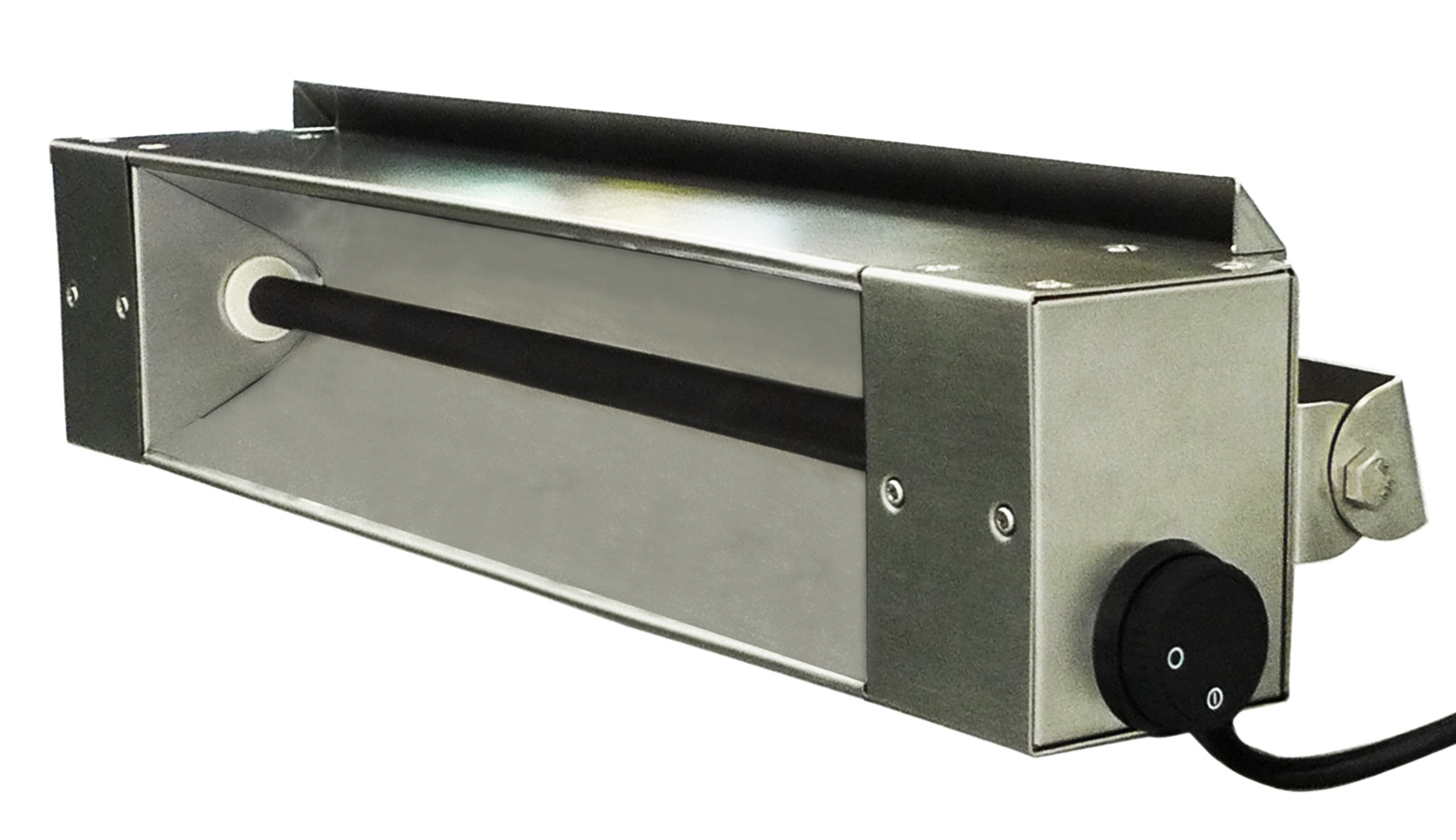

Main features
Radiating tube: See description on page 5 of section 4
Housing: 95 x 110mm, 304 stainless steel, with backside vents, lengths 410mm (16”) and 710mm (28”). Many other lengths on request.
Reflector: Parabolic, polished aluminum
on request if the wavelength must be modified) Warm up time: less than 5 minutes (From room temperature to stabilization)
Surface temperature: 400 to 450°C @ 25°C.
Protection grid: On request, as accessory
Electrical connections: 2 meters cord, H05VVF, 3 x 1.5mm², 16A grounded euro plug. UL cord on request.
Mounting: 3 versions, fixed wall mounting (A), rotating wall mounting (B), hanged (C)
Switch: 2 poles on-off switch
Ingress protection: IP40 (IP44 for hanged model)
Voltage: 230V standard. Other voltages on request (MOQ apply)
Power adjustment: See specific devices P11 and P12 of section 4
Options:
- Other length, from 280 to 1850mm (11” to 72”), covering the full range of culinary food warmers
- Several tubes grouped side by side on the same surface
