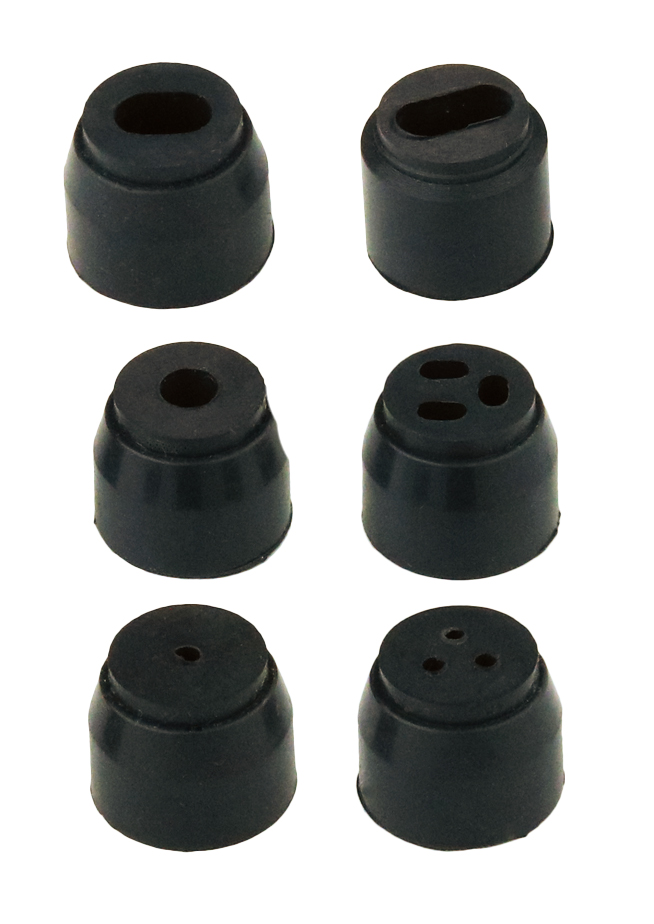

Type 66JG
Cable glands
Components and Accessories
无
Check PDF
Click to see more languages available in the datasheet
Product applicable fields
The product does not currently have its own area
product presentation
Available for flat or round cables, wires and capillaries.
Their rear parts have an elastic conical tip tightening on the conductor. They are compressed by the M20 brass nuts.
Supplied with a stainless steel washer of appropriate diameter. Such stuffings may allow conductor dimensions slightly less than the diameter of 0.2mm (or height or width).
Material: 50 shore black silicone
This model is designed for capillary 1 and 1.5mm thermostats, and is slotted to permit the insertion of bulbs thereof.
Special dimensions: contact us
