Controls and Safety : Automatic Thermostat
  >

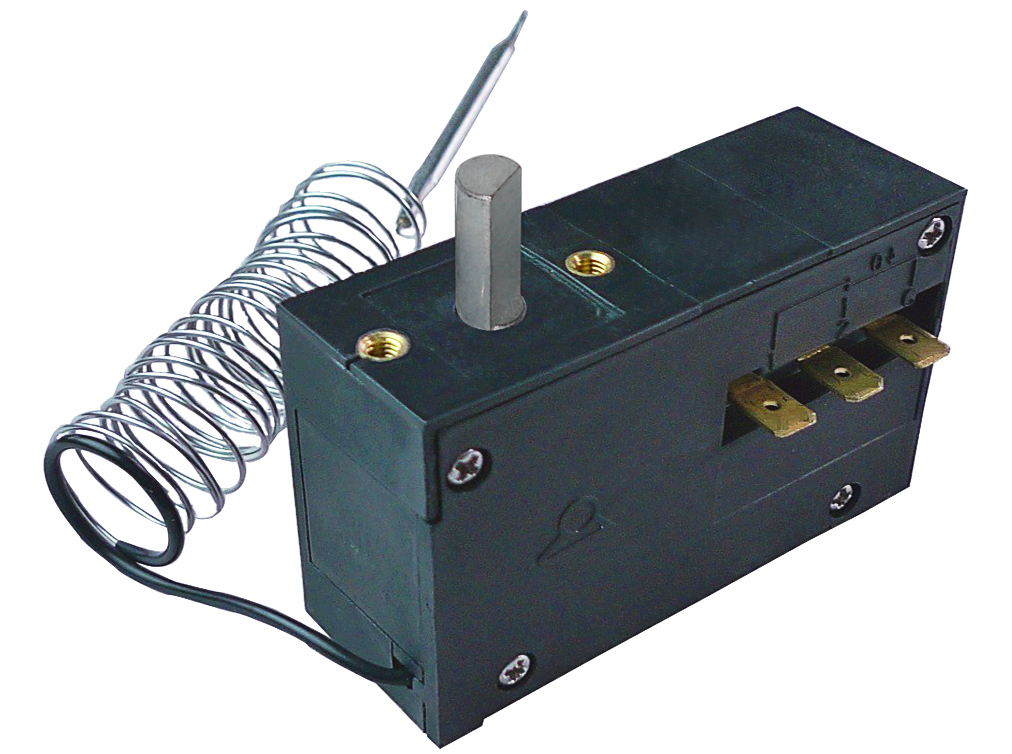

Type KQA
Type KQA
Type KQA
Single pole control thermostat, various ranges up to 500°C
Controls and Safety
Automatic Thermostat
Check PDF
Click to see more languages available in the datasheet
Product applicable fields
    The product does not currently have its own area
product presentation

Housing dimensions： 79.5 × 51 × 28.5mm

Bulb and capillary: Copper or stainless steel depending of temperature range, standard capillary length 1500mm. Capillary minimum bending radius 5mm.

Temperature sensing element: Liquid filled bulb and capillary

Terminals: 3 quick connect terminals 6.3 × 0.8mm.

Adjustment: Dia. 6mm shaft with 4.6mm flat, length 11.5mm.

Mounting: front board, with 2 screws M4, 28mm distance

Electrical Rating (upon EN61058-1):
NC contact: 25(4)A 125/250VAC (100,000 cycles); 16(4)A 400VAC (100,000 cycles)
NO contact: 15(2)A,125/250VAC(100,000 cycles); 10(2)A, 400VAC (100,000 cycles)

Contact：SPDT (snap action contact.)

Electrical life: > >100,000 cycles at nominal rating
