Miniature surface mounting disc limiter, cable output, rating 6A 240VAC max, calibration temperature from 50 °C to 100°C (Current sensitive)

Miniature surface mounting disc limiter, cable output, rating 6A 240VAC max, calibration temperature from 50 °C to 130°C (Current sensitive)

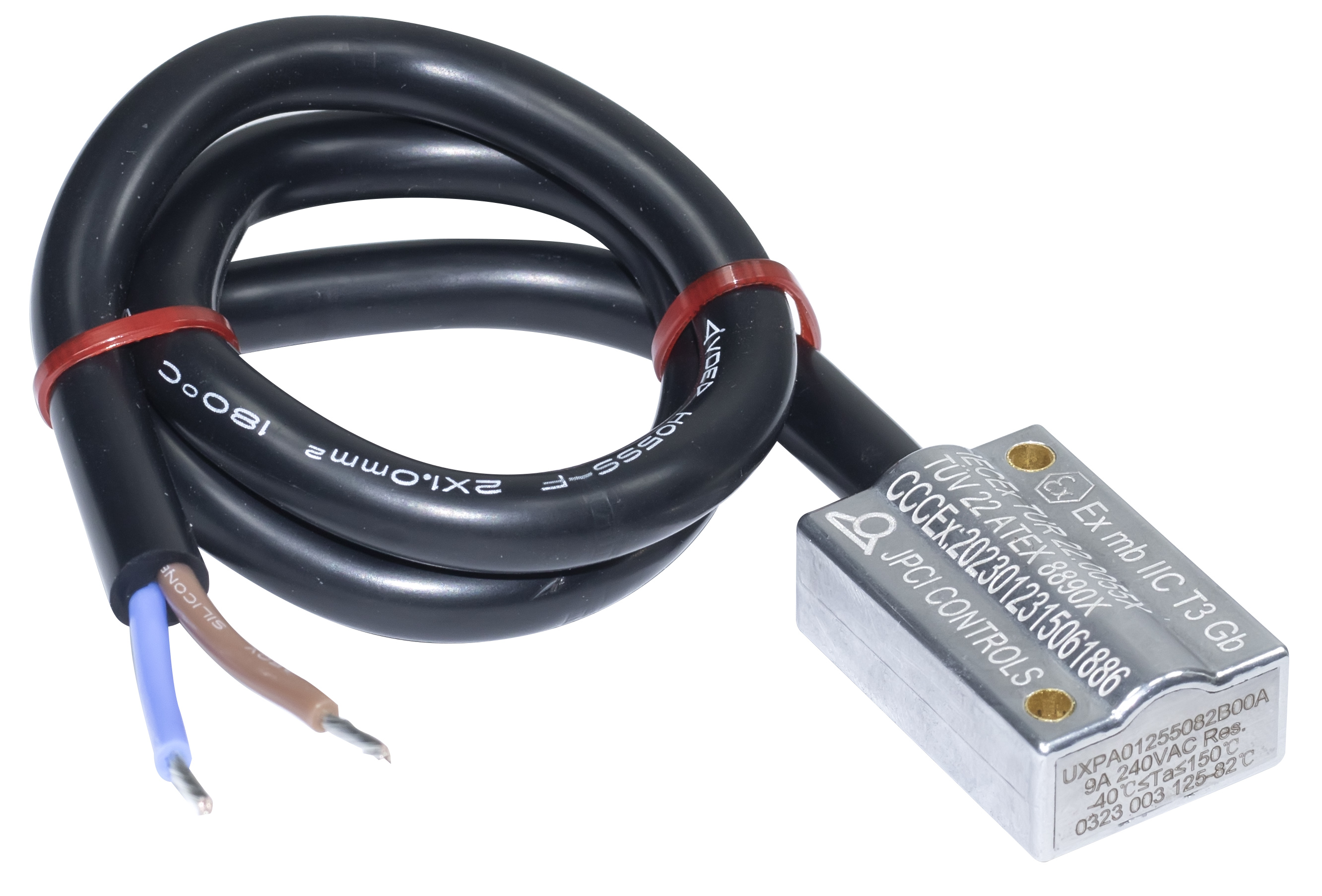

Limiter designed to comply ONLY with IEC60079-0: 2011 (Explosive atmospheres, general requirements), § 26.5.1.2 and IEC 60079-15: 2010 (Explosive atmospheres, Equipment protection by type of protection “n”) § 19; 22.5.1; 22.5.2; 22.5.3.1; 22.5.3.2 and 22.5.3.3. Maximum rating 9A 240VAC. Waterproof. (TÜV certificate GC/70269203) Calibration temperature 5 to 85°C

TYPE 4VA. Disc limiters, cable output. Rating 10A 240VAV. Temperature calibration from 5 to 100°C. Various body design available (A, B, C, D, E, F), for ambient control, surface control or liquids control. It is possible to design new bodies without request to apply for new approvals; TYPE 4VB, Disc limiters wires output. Rating 10A 240VAC. Temperature calibration from 5 to 100°C. Various body design available (A, B, C, D, E, F), for ambient control, surface control or liquids control. It is possible to design new bodies without request to apply for new approvals

TYPE 4XA. Disc limiters cable output. Rating 10A 240VAC. Temperature calibration from 5 to 130°C. Various body design available (A, B, C, D, E, F), for ambient control, surface control or liquids control. It is possible to design new bodies without request to apply for new approvals; TYPE 4XB, Disc limiters wires output. Rating 10A 240VAC. Temperature calibration from 5 to 130°C. Various body design available (A, B, C, D, E, F), for ambient control, surface control or liquids control. It is possible to design new bodies without request to apply for new approvals

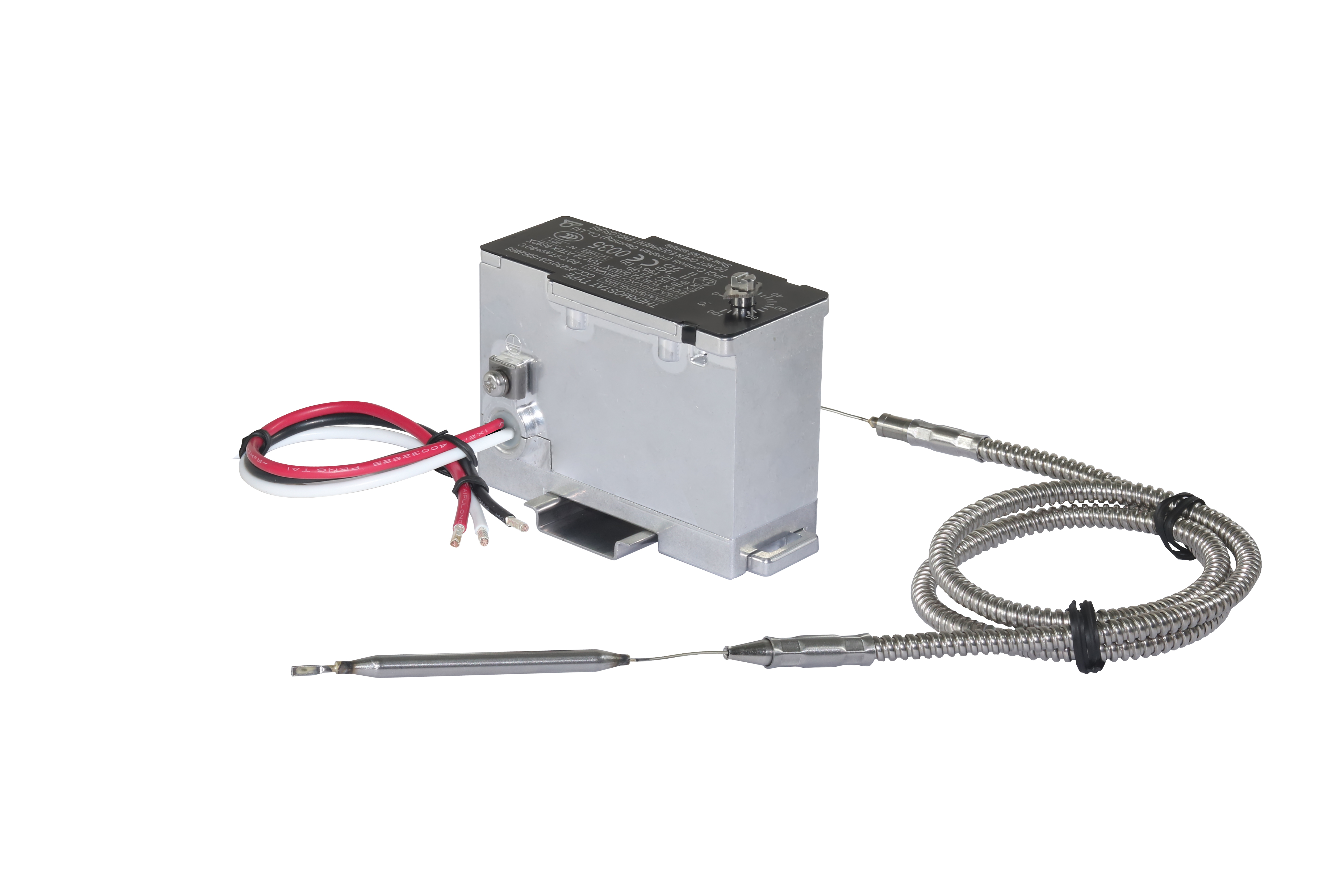

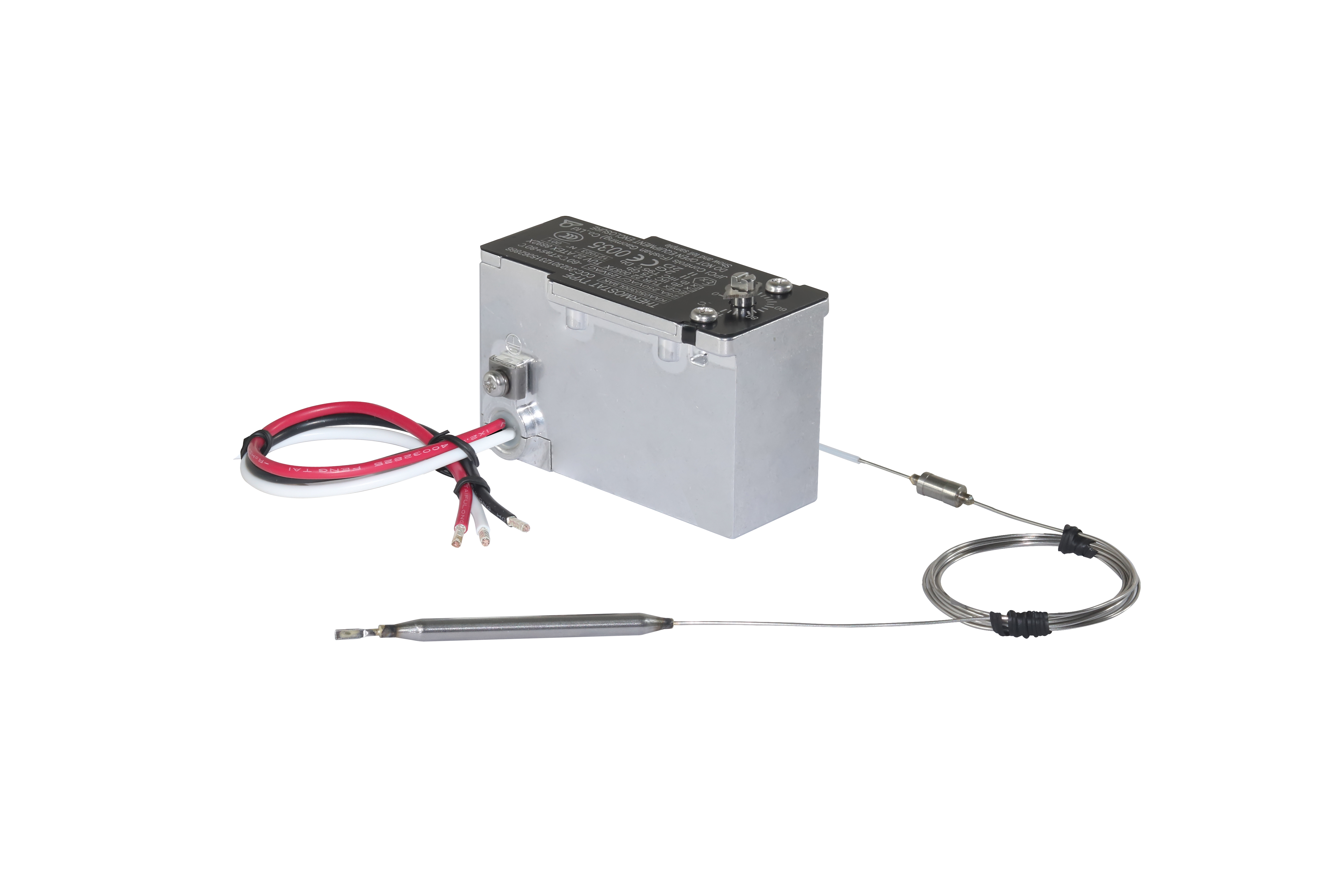

Temperature control, front or rear mounting, cable connection. Multiples temperature ranges from -50°C to +500°C. NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +50°C (T6/T80°C) NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +80°C (T5/T95°C) NC:25(4)A NO:15(2)A, 125/250 VAC; 50/60 Hz; -60°C to +50°C (T5/T95°C)

Temperature control, Din Rail mounting, cable connection. Multiples temperature ranges from -50°C to +500°C. NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +50°C (T6/T80°C) NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +80°C (T5/T95°C) NC:25(4)A NO:15(2)A, 125/250 VAC; 50/60 Hz; -60°C to +50°C (T5/T95°C)

Temperature control, front or rear mounting, wires connection. Multiples temperature ranges from -50°C to +500°C. NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +50°C (T6/T80°C) NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +80°C (T5/T95°C) NC:25(4)A NO:15(2)A, 125/250 VAC; 50/60 Hz; -60°C to +50°C (T5/T95°C)

Temperature control, Din Rail mounting, wires connection. Multiples temperature ranges from -50°C to +500°C. NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +50°C (T6/T80°C) NC:16(4)A NO:10(2)A, 125/250/400 VAC; 50/60 Hz; -60°C to +80°C (T5/T95°C) NC:25(4)A NO:15(2)A, 125/250 VAC; 50/60 Hz; -60°C to +50°C (T5/T95°C)

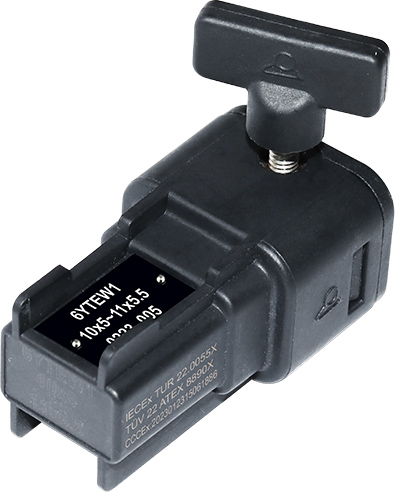

Heating cable termination. Can be used on standard heating cable or explosion proof heating cable. Maximum temperature 95°C. Seals are selected in factory based on dimensions of heating cable sample received.

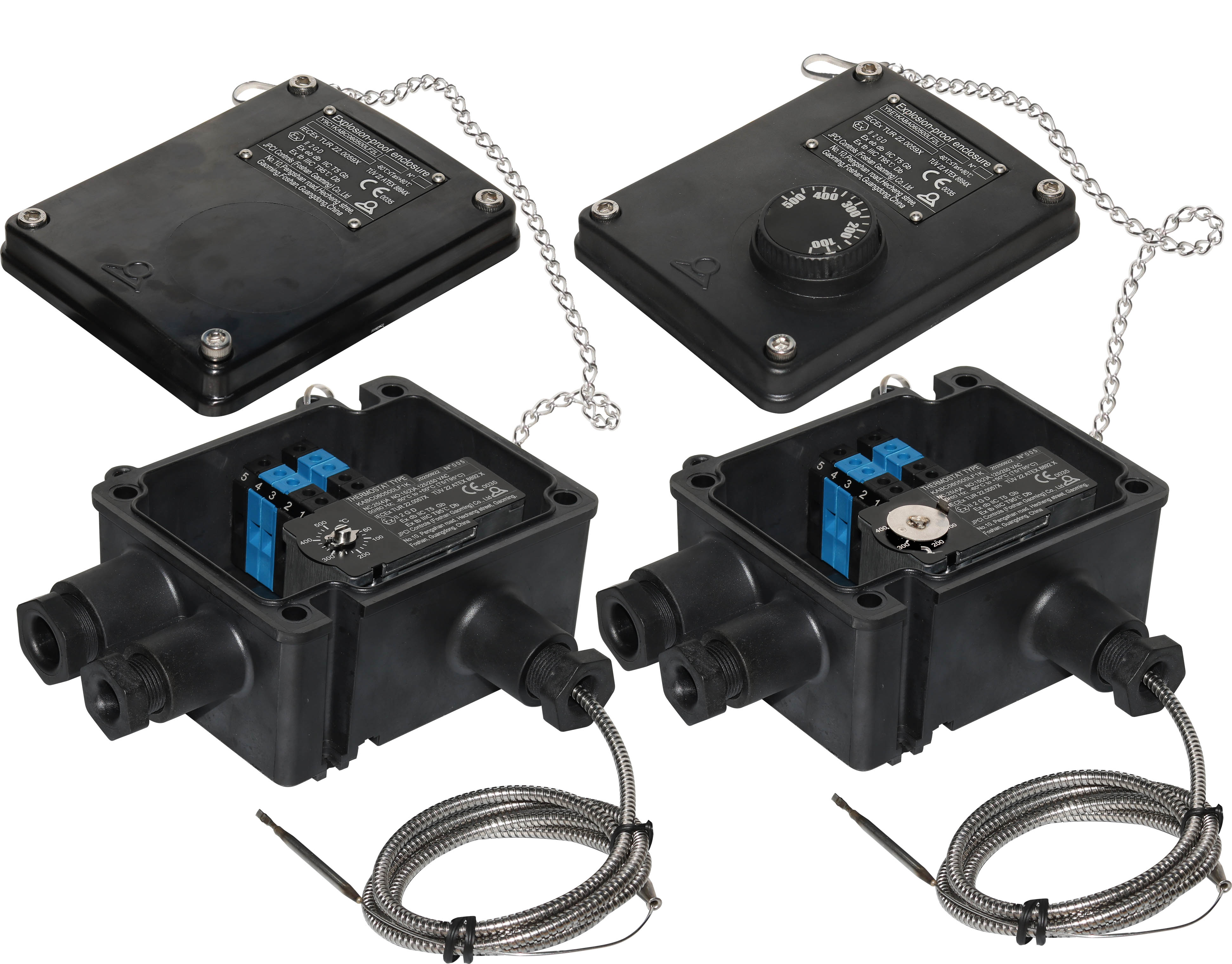

Connection boxes with two M20 and one M25 cable glands and one bulb and capillary thermostat with internal or external adjustment, capillary output on lateral side
