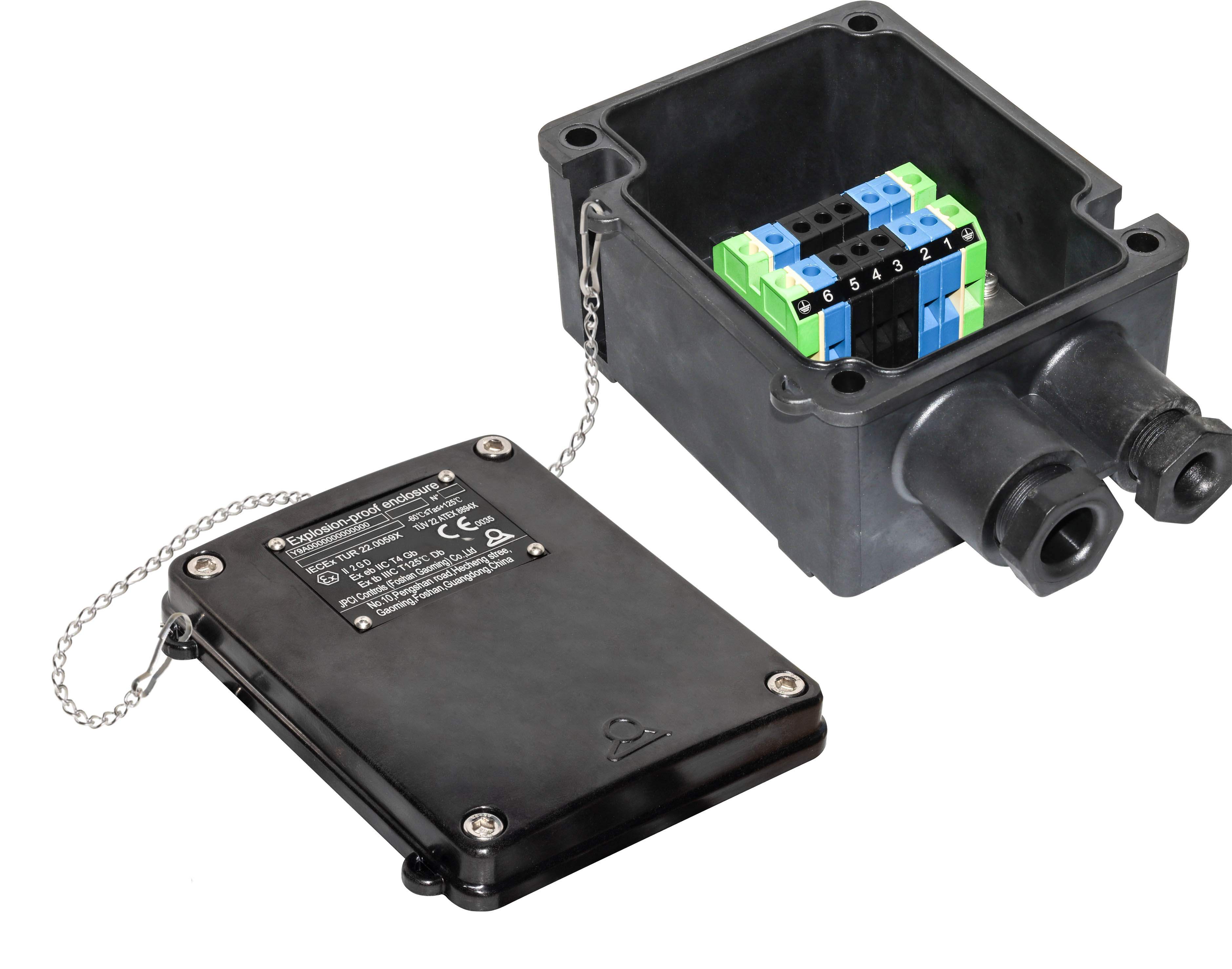

Connection boxes with M20 and M25 cable glands and 35mm DIN Rail

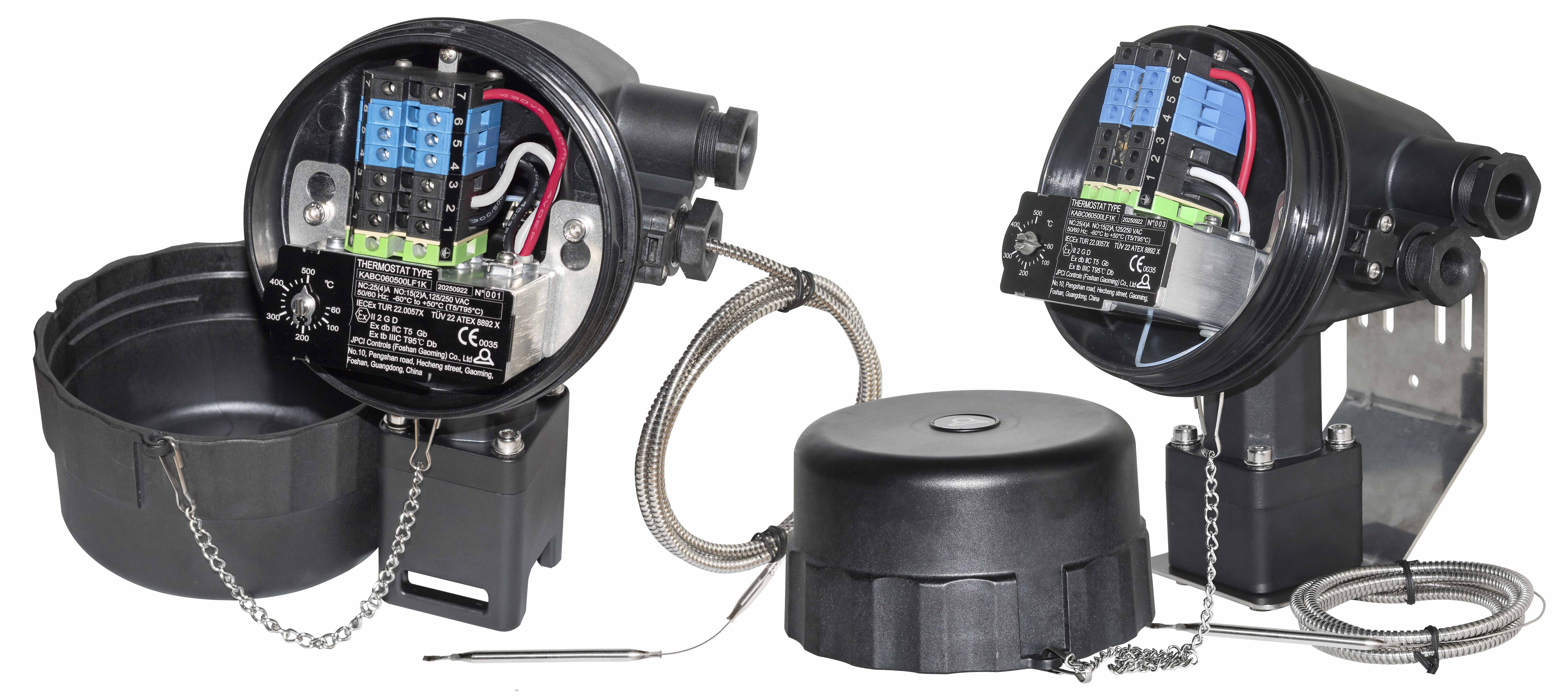

Some examples of bulb and capillary thermostats, with set point adjustment, with pipe mounting leg (Y92***KA) or pole/ wall mounting bracket (Y93***KA), rating up to 25A

TYPE YC3 Simplified 3 ways PPS box for connecting heating cables. 6mm² screw terminals. Mechanical cable retention. Temperature -60+95°C Capacity 40A. Supplied with a set of gaskets for the main dimensions of round and flat cables

Self-stripping junction box in PPS, with four M25 cable glands. Can be used on standard heating cable or explosion proof heating cable. Maximum temperature 95°C. Rating 32A, 6mm² Seals are selected in factory based on dimensions of heating cable sample received. Available with flat wall mounting bracket or with plastic or stainless-steel brackets for pipe mounting

Self-stripping junction box in PPS, with 2 M25 cable glands. Can be used on standard heating cable or explosion proof heating cable. Maximum temperature 95°C. Rating 32A, 6mm² Seals are selected in factory based on dimensions of heating cable sample received. Available with flat wall mounting bracket or with plastic or stainless-steel brackets for pipe mounting

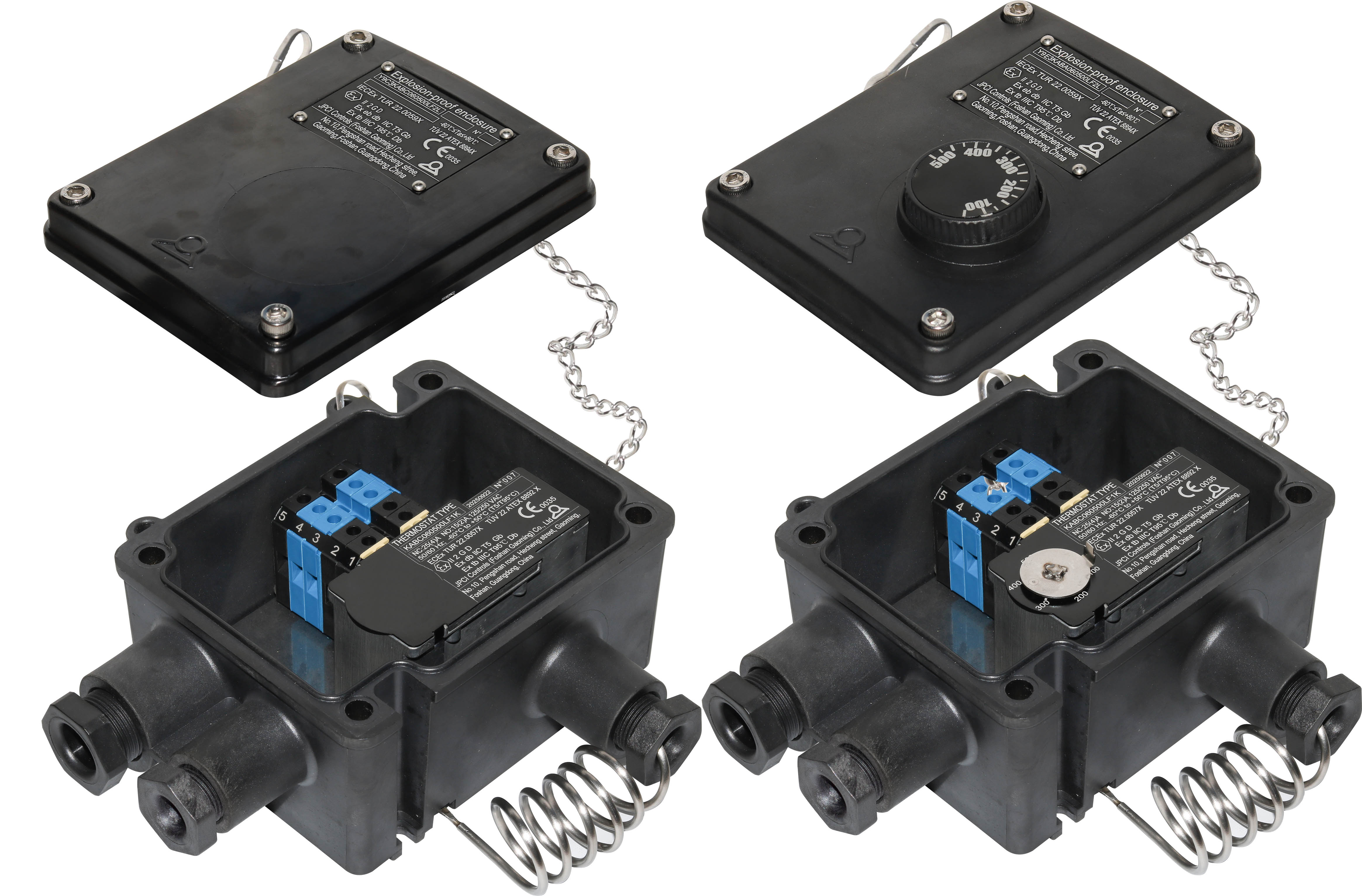

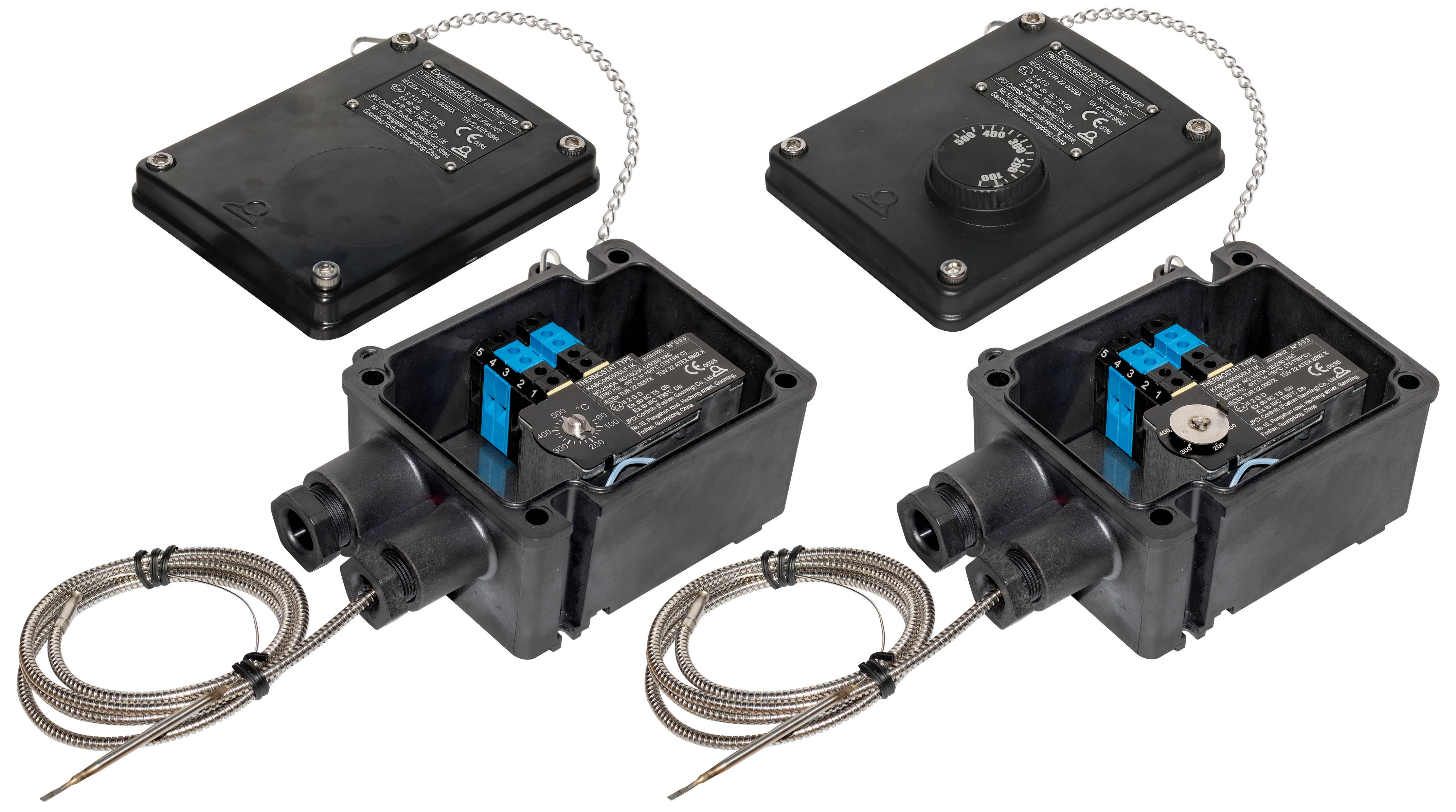

Connection boxes with one M20 and one M25 cable glands and one bulb and capillary thermostat with internal or external adjustment, capillary output on bottom side

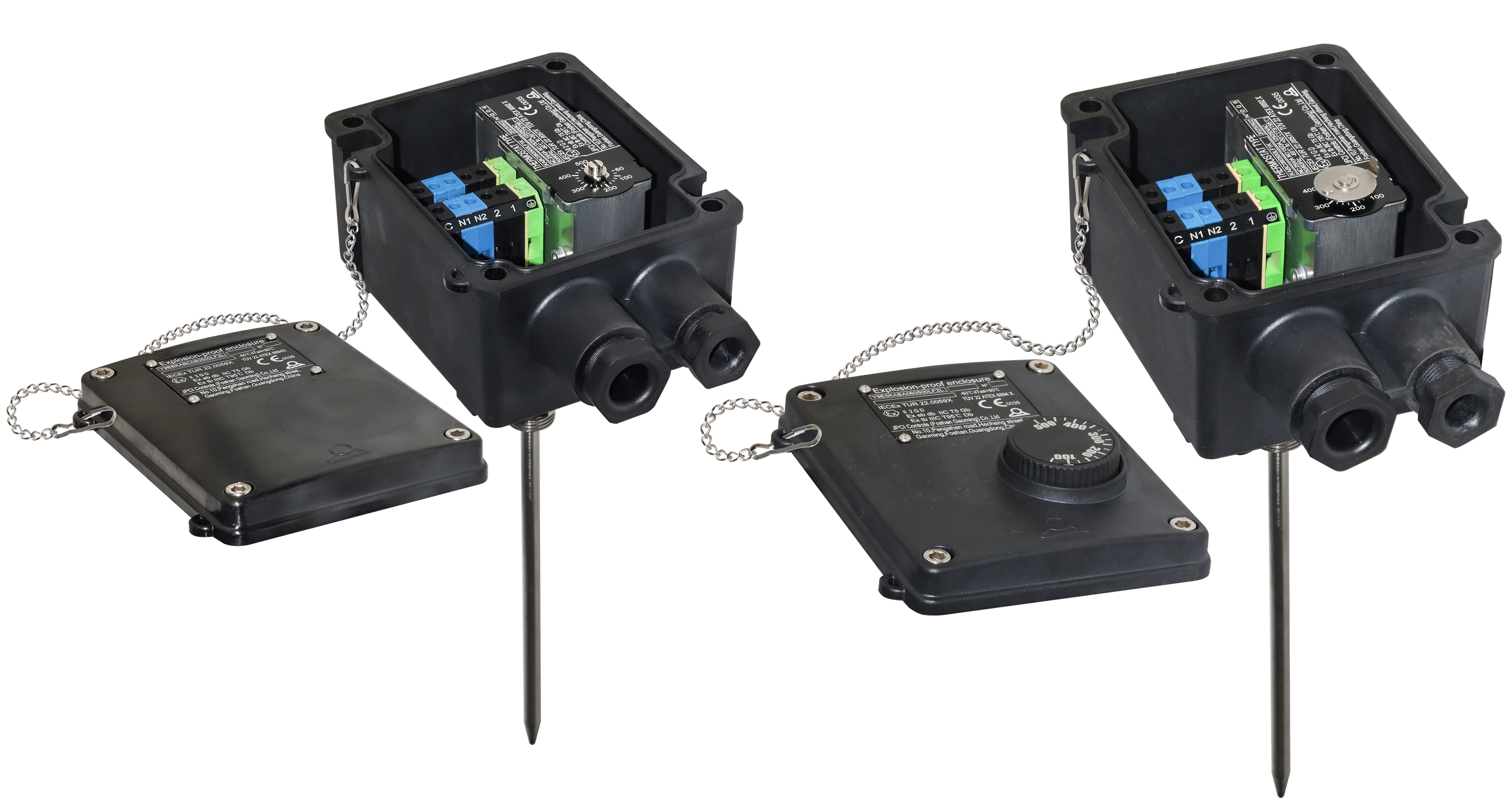

Y9B5: flat cover for inside adjustment, 140×110×90mm for one KA Y9E5: cover with knob outside adjustment, 140×110×100mm for one KA Rectangular PPS enclosure, wall mounting, cover with knob outside adjustment, only one M25 and one M20 cable gland on 90×110mm side, one set of 6 ways 4mm2 connection blocks, including one ground connection block. Bulb and capillary output is made inside pocket located on backside. Low temperature maximum set point (≤300°C). Pocket with ½” thread (other sizes in option) Pocket length to be specified. Rating up to 25A

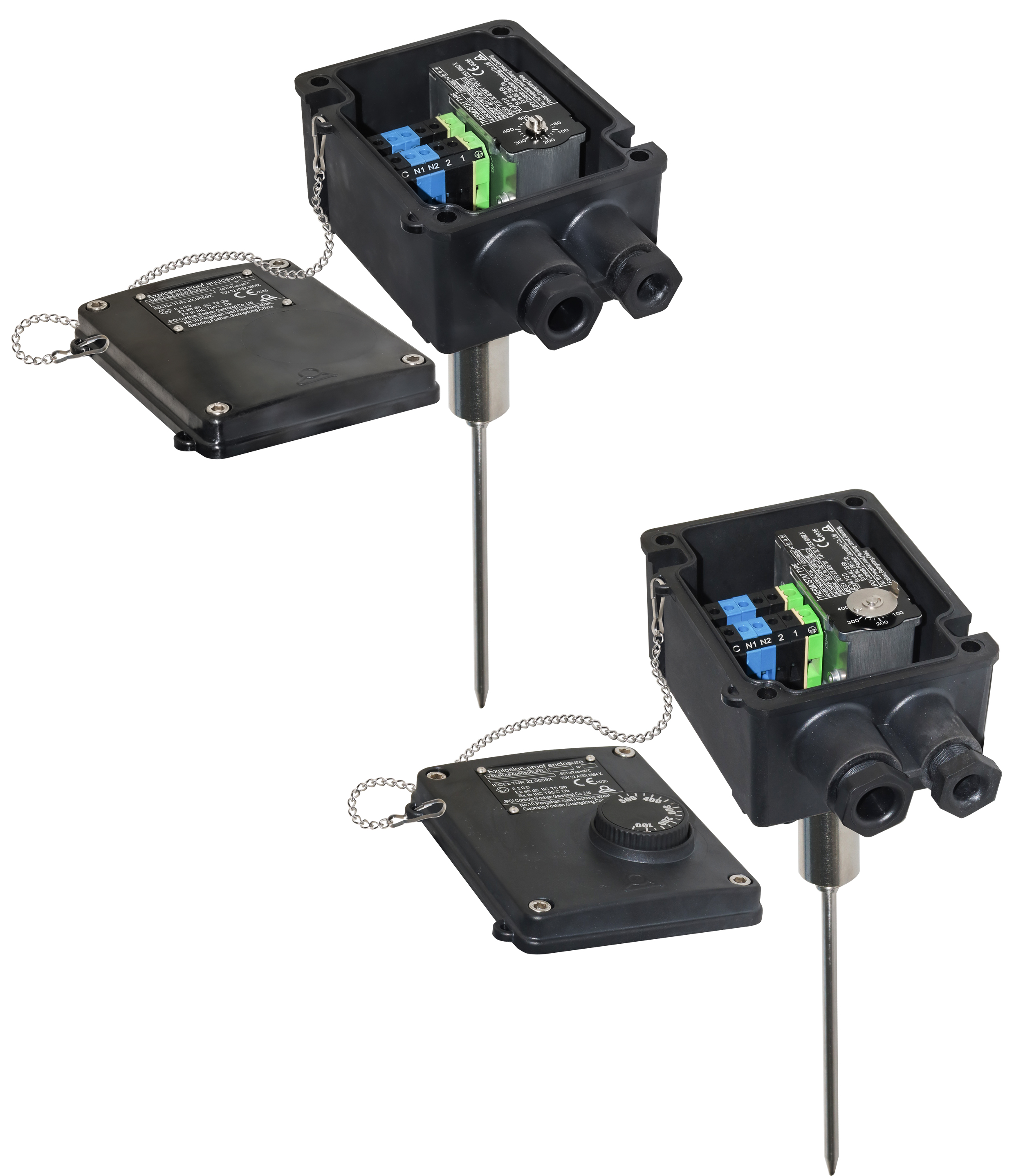

Y9B6: flat cover for inside adjustment, 140×110×90mm for one KA Y9E6: cover with knob outside adjustment, 140×110×100mm for one KA Rectangular PPS enclosure, wall mounting, cover with knob outside adjustment, only one M25 and one M20 cable gland on 90×110mm side, one set of 6 ways 4mm2 connection blocks, including one ground connection block. Bulb and capillary output is made inside pocket located on backside. High temperature maximum set point (300≤500°C). Pocket with heat exchanger and ½” thread (other sizes in option) Pocket length to be specified. Rating up to 25A

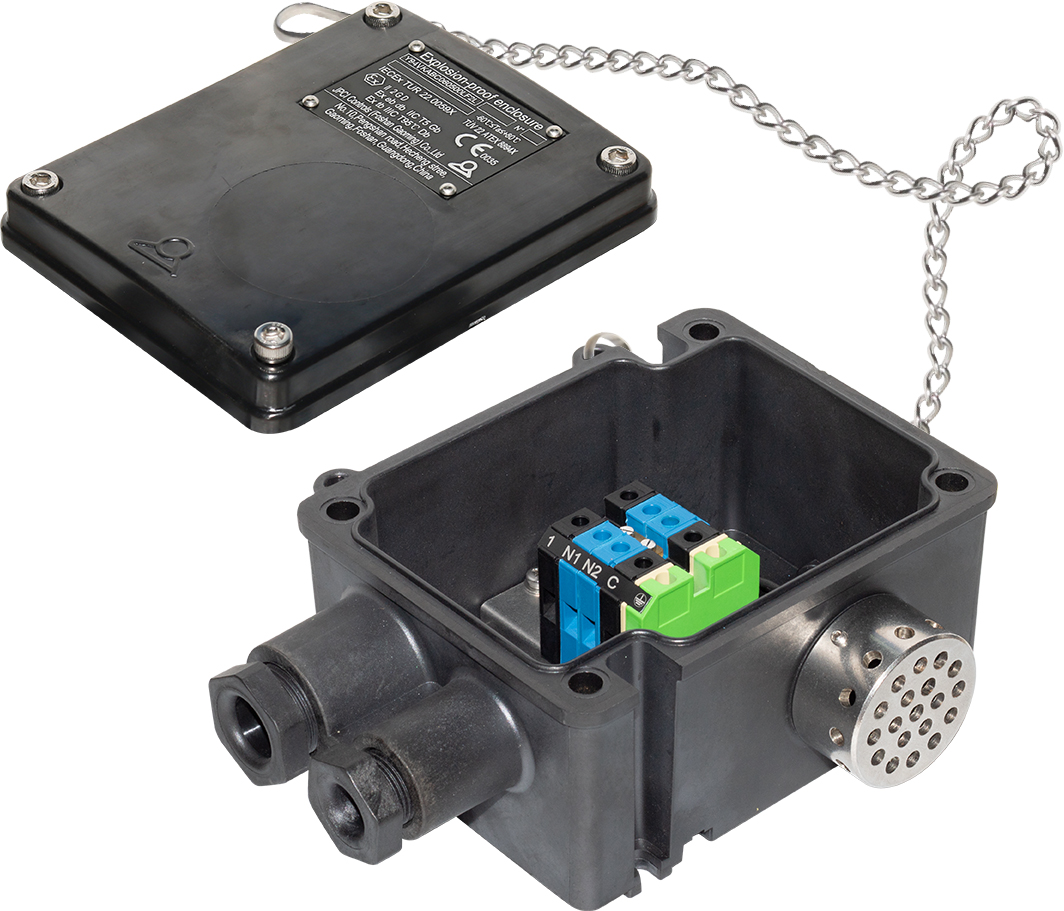

Connection boxes with two M20 and one M25 cable glands and one bulb and capillary thermostat with internal or external adjustment, capillary output on lateral side, ambient temperature bulb

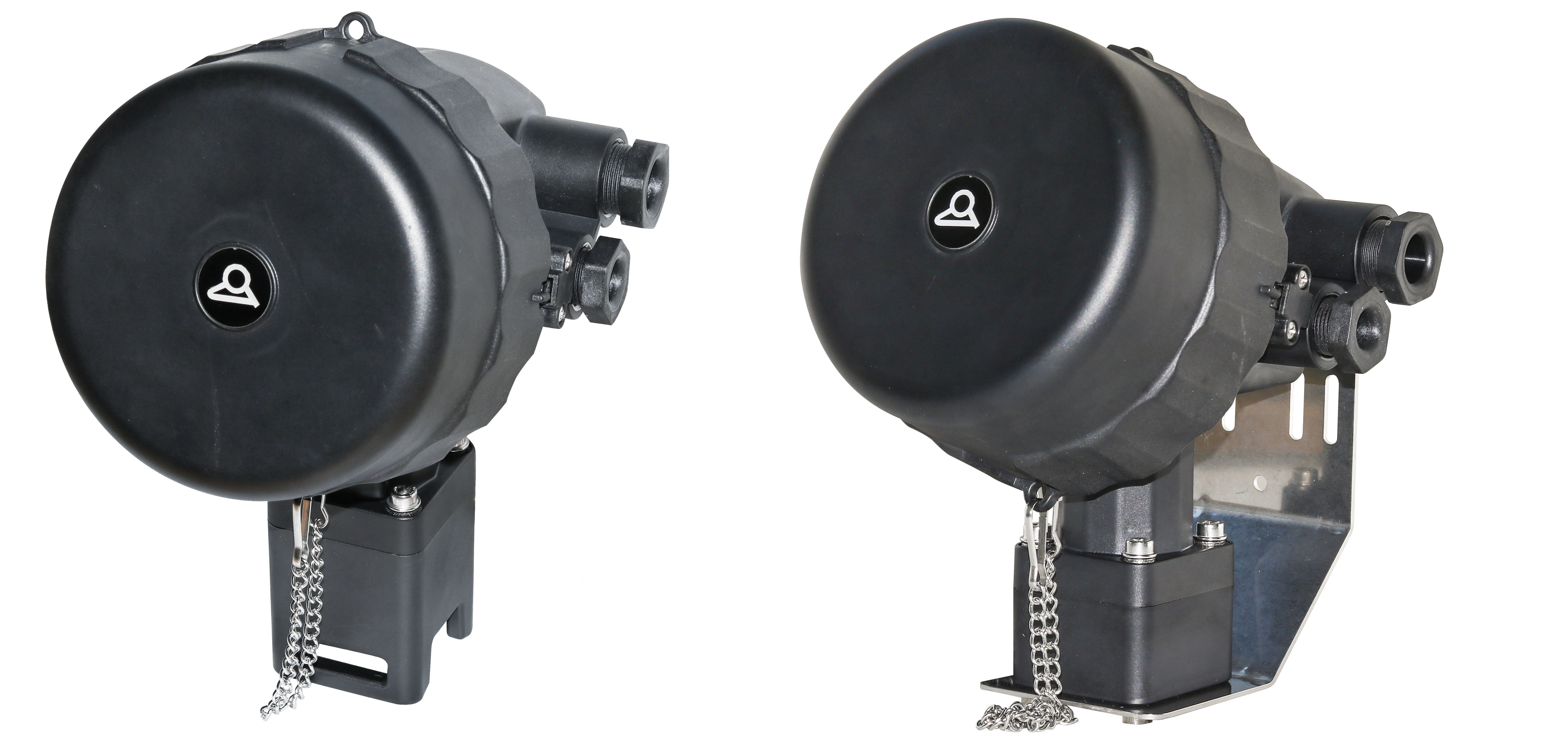

Electrical heat tracing connection boxes, for mounting on pipes (Y92), poles or vertical walls (Y93), intended for the incorporation of connection blocks, mechanical or electronic thermostats.

Pipe mounting legs for explosionproof enclosures

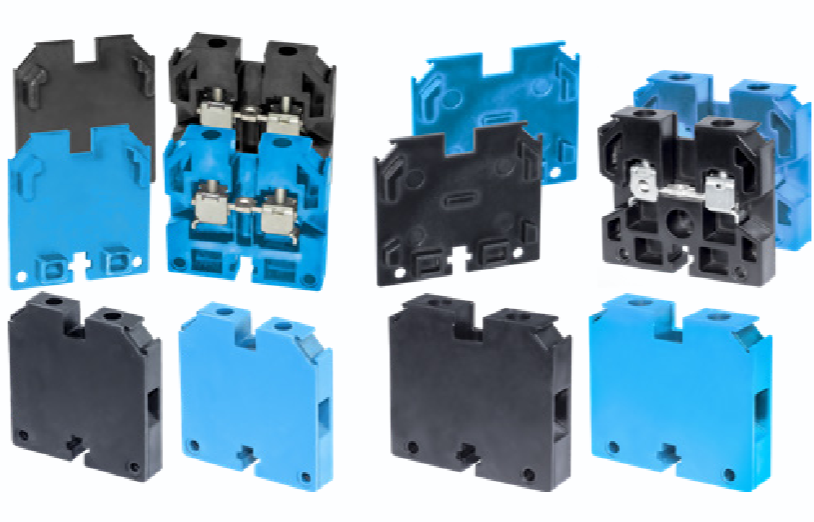

ATEX connection blocks, 4mm² and 6mm² for line and neutral, for EX “e” enclosures

Disc limiter inside enclosure with screw terminals connection box. Electrical rating 10A 240VAC. Calibration from 5 to 80°C. Connection block for 0.5 to 4mm² wires, 3 to 9 terminals. 1 or 2 M20 cable glands.
