Controls and Safety : Automatic Thermostat
  >

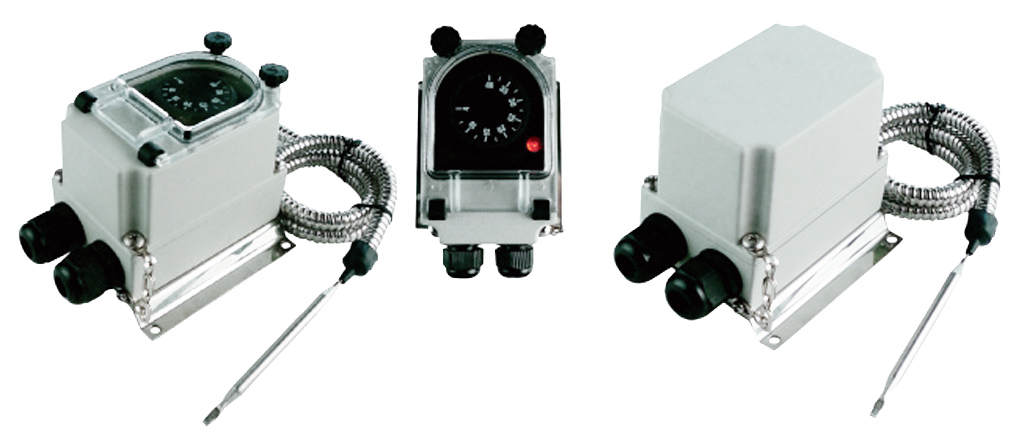

Type Y1I8G and Y1G8G
Type Y1I8G and Y1G8G
Bulb and capillary thermostats
Controls and Safety
Automatic Thermostat
Check PDF
Click to see more languages available in the datasheet
Product applicable fields
    The product does not currently have its own area
product presentation

Applications: Remote control in usual industrial applications and environments, not hazardous areas. Internal adjustment is convenient for products that must not be frequently adjusted.

Housing: Aluminum, IP65, IK10. Mounted on a SUS304 stainless steel wall mounting plate which keeps temperature sensing element away from the wall. Grey RAL7032 epoxy painting. Stainless steel captive cover screws. Captive aluminum lid.

Set point adjustment ranges: -35+35°C (-30+95°F); -10+40°C (15-105°F); 4-40°C (40-105°F); 0-60°C (32-140°F); 0-90°C (32-195°F); 30-90°C (85-195°F); 30-110°C (85-230°F); 50-200°C (120-390°F); 50-300°C (120-570°F); 100-400°C (210-750°F); 100-500° C (210-930°F)

Set point adjustment: By °C printed knob. All types have an adjustable rotation limit system located inside the knob that allows reducing the set point adjustment span. Types with external adjustment have a transparent window. This device allows seeing the pilot light and the knob position. °F values are available as an option.

Action: Temperature control.

Sensing element: Liquid expansion bulb and capillary. The capillary is protected by a stainless steel corrugated pipe terminated by a silicone tip. A plastic cap plug provided as standard accessory allows locking the flexible metal conduit inside a pocket (See pockets in the accessories section).

Electrical connections: Inside, on screw terminal connection block

Earthing: Internal and external screw terminal.

Pilot light: Allow to visualize thermostat contact output position. Standard for all models with transparent window. Non Standard and on special request only for models with plain aluminum cover.

Cable input and output: Two M20 cable gland, Black PA66. Mounting: Wall mounting, by 4 holes for screws dia. 4 to 5mm, 94 × 92mm distance Identification: Metallic identification label, riveted.

Contact: SPDT

Electrical rating, resistive loads:

      - Open on temperature rise contact (C-1) 16A 250V, 50 ~60Hz: >100000 cycles, 20A 250V, 50 ~60Hz: ≥50000 cycles, 10A 400V, 50 ~60Hz: ≥50000 cycles.

      - Close on temperature rise contact (C-2): 6A 250V 50 ~60Hz: >100000 cycles Electrical rating, inductive loads:

      - Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles

      - Close on temperature rise contact (C-2): 0.6A 250V 50 ~60Hz: >100000 cycles

Minimum storage temperature: -35°C (-30°F)

Maximum ambient temperature: 60°C (140°F)

For more technical information ask 8G thermostat technical data sheet.
